Castellated Egg Create Panels for 16mm pipe (Pack of 22 Boards 23.37m2)

CASTELLATED PANEL FOR 16MM PIPE: 1250mm x 850mm x 20mm

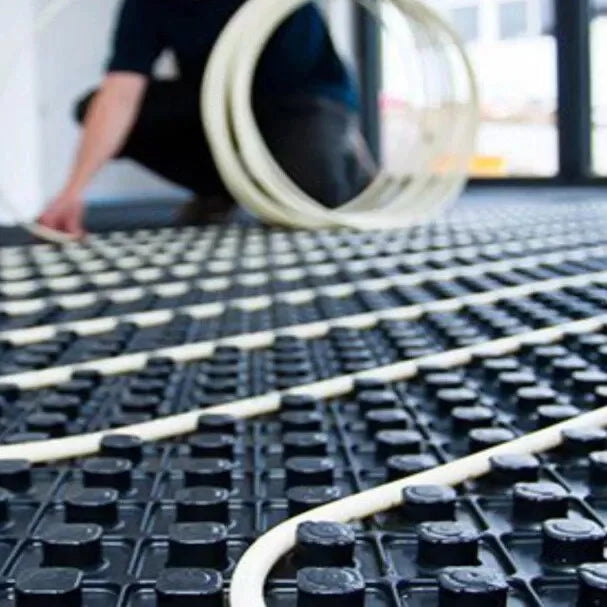

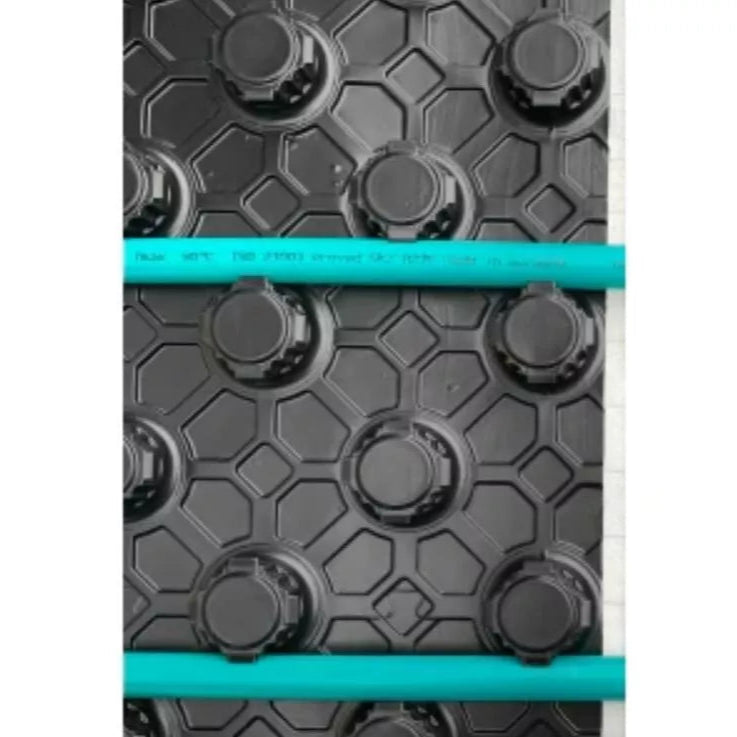

The Castellated floor panels allow for a fast installation together with accurate fixing of underfloor heating pipes. The design allows the pipe to be held securely in place by the castellated knobs. It also acts as a pipe fixing template ensuring accurate spacing of pipes, allowing an even heat distribution. They are lightweight and can be easily cut to size to fit any room shape. The underfloor heating pipes can be fitted and securely held in position before and during the laying of the floor screed. The trays are provided in black, and can be neatly overlapped to create a fully interlocking continuous grid floor panel ready for the pipes which can be fixed at 100, 150, 200 and 250mm pipe centres.

Specification

• Total size 1250mm x 850mm x 20mm
• Suitable for 15mm, 16mm, and 17mm pipes
• Pipe Centres can be at 100mm, 150mm, 200mm and 250 mm
• Easy to install
• Made from Recycled High Impact Polystyrene
• Minimum amount of waste
• Eliminates pipe contact with insulation
• Each panel will cover just above 1 square metre
• Colour - black
