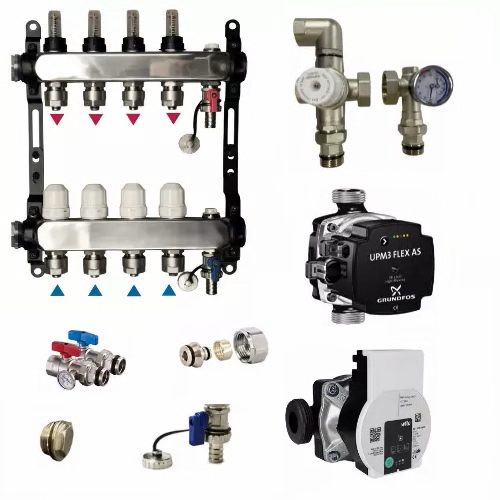

2-12 Port Manifolds Control Pack with Grundfos or Wilo Pump

MANIFOLD

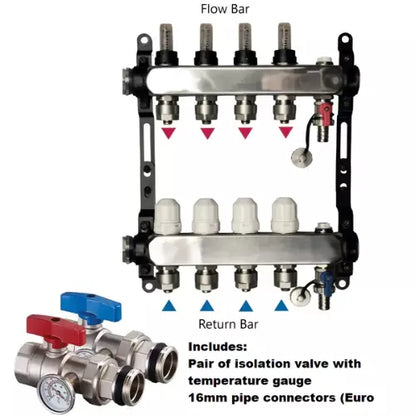

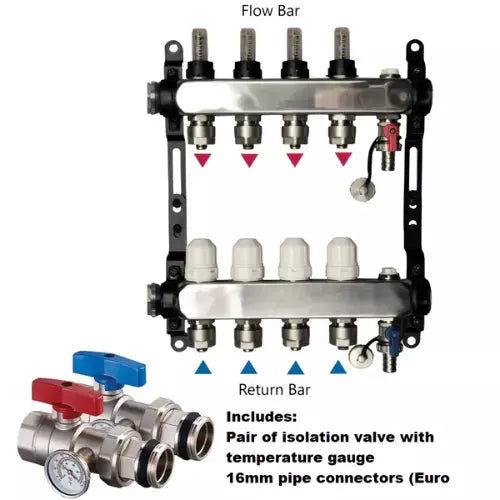

The Manifold and Pump set are at the heart of any underfloor heating system since they control the flow and distribution of water from the heat source (e.g. boiler, heat pump) to each underfloor pipe circuit. Our manifolds come complete with:

• Pair of isolation values with temperature gauge
• Pair of air vent
• Pair of drain valves
• Pair of end caps
• 16mm pipe connectors (Euro cones)
• Manifold brackets

Our manifolds are available for 2-12 underfloor heating circuit ports and are supplied with fully assembled fixing brackets. Each manifold is provided with 1” flow/return headers and is produced as a single unit from high quality stainless steel.

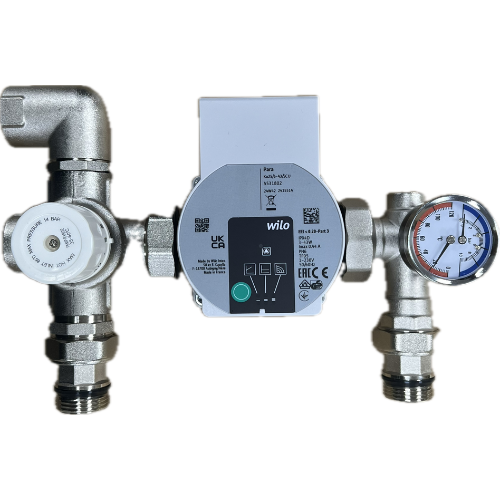

MIXING VALVE / PUMP SET

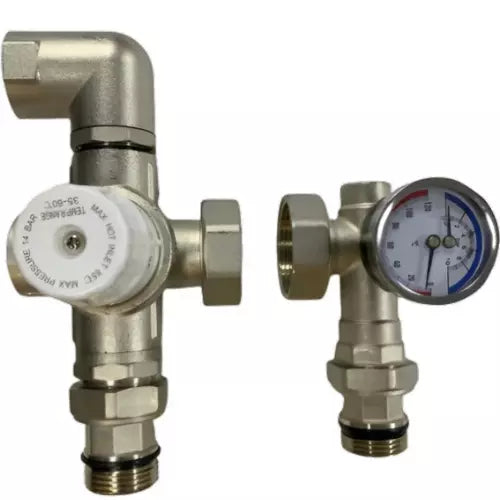

The mixing set includes a blending valve, an ‘A’ rated energy efficient pump, and a temperature controller complete with a temperature sensor. The pack is suitable for use with floor areas of up to 250m2 or a maximum output of 20kW.

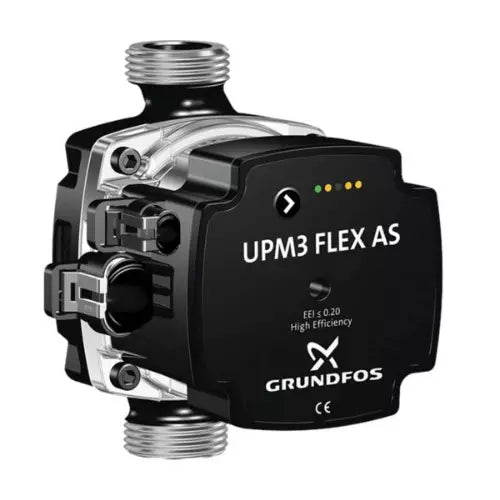

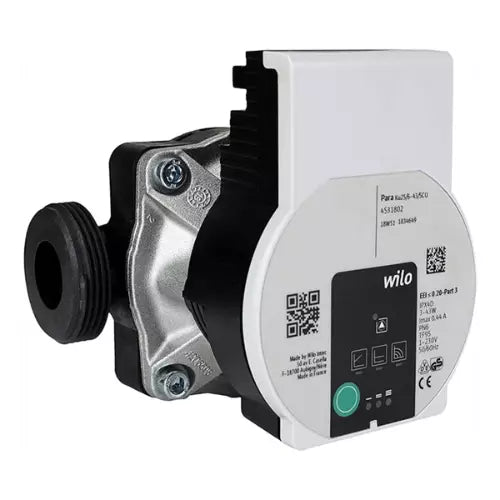

Customer has a choice of selecting circulating pumps from market leading brands of Grundfos or Wilo.
The Grundfos / Wilo pump sets have been specifically designed for installation with manifolds and their lightweight design makes them ideal for wall mounting. Featuring a fully ERP compliant, energy-efficient pump as well as a port for an air vent, the Grundfos / Wilo pump set is the installer’s choice for fuel-efficient, reliable underfloor heating installations.
