Classic Flat Panel Type 22 Double Convector Central Heating Radiators - White
Classic Flat Panel Type 22 Double Convector Central Heating Radiators - White
Output (BTU) : 2174
Output (Watts) : 637
Output (BTU) : 3259
Output (Watts) : 955
Output (BTU) : 4347
Output (Watts) : 1274
Output (BTU) : 5432
Output (Watts) : 1592
Output (BTU) : 6517
Output (Watts) : 1910
Output (BTU) : 7606
Output (Watts) : 2229
Output (BTU) : 8691
Output (Watts) : 2547
Output (BTU) : 9779
Output (Watts) : 2866
Output (BTU) : 10864
Output (Watts) : 3184
Output (BTU) : 1897
Output (Watts) : 556
Output (BTU) : 2846
Output (Watts) : 834
Output (BTU) : 3794
Output (Watts) : 1112
Output (BTU) : 4743
Output (Watts) : 1390
Output (BTU) : 5691
Output (Watts) : 1668
Output (BTU) : 6640
Output (Watts) : 1946
Output (BTU) : 7589
Output (Watts) : 2224
Output (BTU) : 8537
Output (Watts) : 2502
Output (BTU) : 9486
Output (Watts) : 2780
Output (BTU) : 1690
Output (Watts) : 466
Output (BTU) : 2388
Output (Watts) : 700
Output (BTU) : 3184
Output (Watts) : 933
Output (BTU) : 3979
Output (Watts) : 1166
Output (BTU) : 4774
Output (Watts) : 1399
Output (BTU) : 5569
Output (Watts) : 1632
Output (BTU) : 6367
Output (Watts) : 1866
Output (BTU) : 7162
Output (Watts) : 2099
Output (BTU) : 7957
Output (Watts) : 2332
Output (BTU) : 3136
Output (Watts) : 919
Output (BTU) : 4391
Output (Watts) : 1287
Output (BTU) : 6272
Output (Watts) : 1838
Share
Couldn't load pickup availability
Plumbing Giant
Estimated Delivery: 2 - 4 Working Days
Product Description

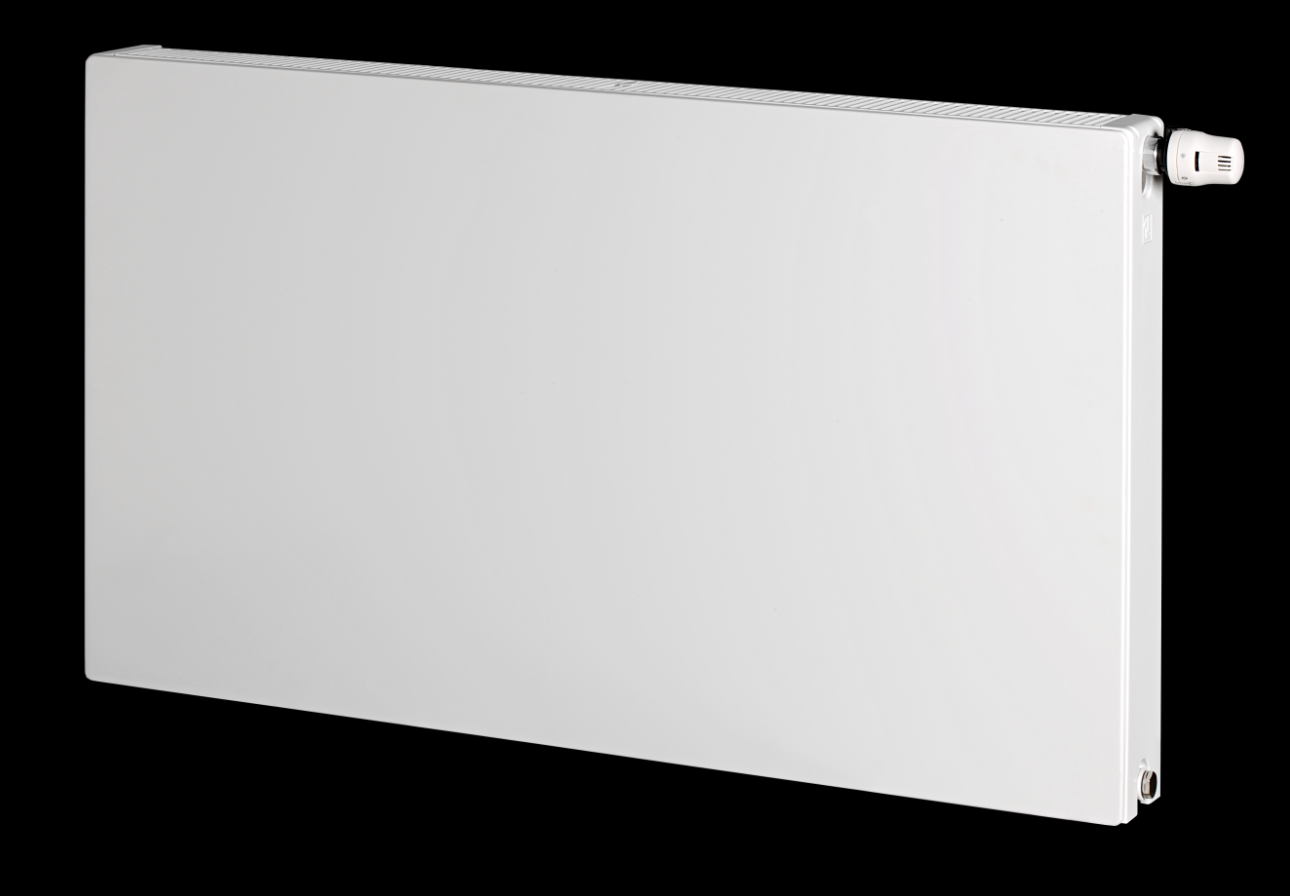

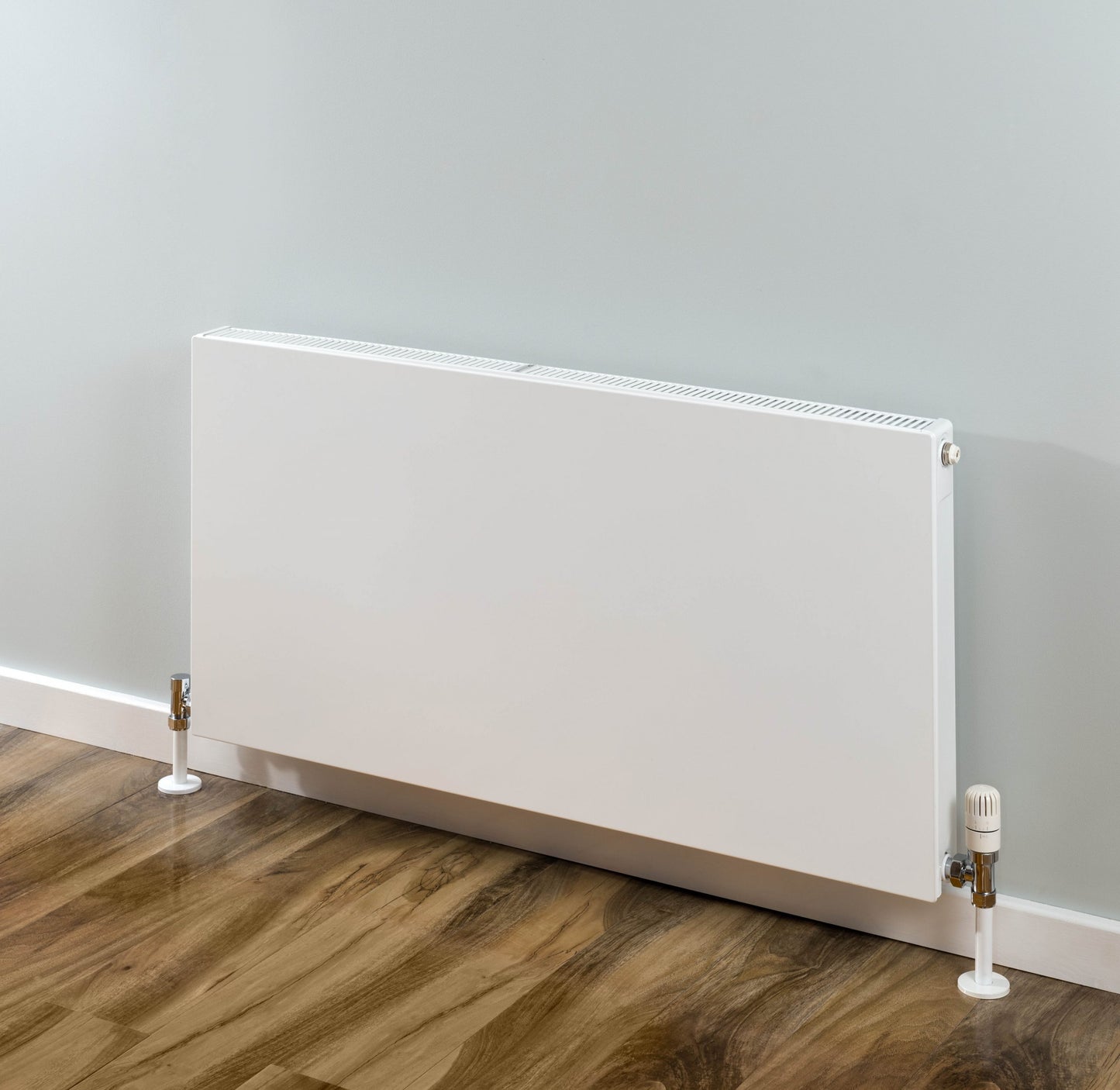

The exclusive collection of Classic Flat Panel radiators come feature-packed, and offer a vast array of sizes across 3 different configurations. These flat panel radiators come with a factory-fitted top grille and side panels, and feature a classic flat front; an uncomplicated design that is great for replacements and new installations alike.
These radiator are available in following Configuration;
- Type 11 configuration - also known as a Single Convector or K1 - featuring a Single front panel and single set of convector fins.
- Type 21 configuration - also known as a P+ - featuring a two panels and Single set of convector fins.
- Type 22 configuration - also known as a Double Convector or K2 - featuring Double panel and double set of convector fins.
Product Features
- Flat panel radiator with Flat front design
- Comprehensive range of sizes available spanning 4 different heights; widths up to 2000mm
- Complete with factory-fitted top grilles and side panels
- Type 22 models feature front and back panel with two set of convector fins
- Finished in high quality RAL 9016 Traffic White
- Suitable for operating pressures of up to 10 bar and a maximum operating temperature of 120C
- Manufactured under BS EN ISO 9001 quality system and outputs comply with EN442
- Robust and effective packaging to prevent damage in transit - plastic corners, bubble wrap and polythene protection
- Complete with installation package including brackets, bolts, vents and plugs
- L-shaped wall brackets allow for 2 different installation depths
- Includes "No Quibble Guarantee" of 10 years against faulty manufacture
Please Note
- Radiator valves not included - a selection of popular styles are available as additional options
Product Specification
| Radiator Type | FLAT Panel |
|---|---|
| Panel Type | Type 22 - Double Convector |
| Radiator Design | Standard |
| Radiator Height | 300mm, 400mm, 500mm, 600mm |
| Radiator Width | 400mm, 600mm, 800mm, 1000mm, 1200mm, 1400mm, 1600mm, 1800mm, 2000mm |
| Radiator Depth | 100mm |
| Wall to Pipe Centres | 72 or 83mm |
| Orientation | Horizontal |
| Fuel | Central Heating |
| Material | Mild Steel |
| Colour | White |
| Inlet Connection Size | 1/2" BSP |
| Connections Position | Side |
| Brand | Classic |
| Collection | Classic FLAT |
