Joule Cyclone Platinum Horizontal In-Direct Unvented Cylinder 500 Litre Stainless Steel

Joule Cyclone Platinum Horizontal In-Direct Unvented Cylinder 500 Litre Stainless Steel

Regular price £2,700.00 GBP
Regular price Sale price £2,700.00 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Plumbing Giant

Estimated Delivery: 2 - 4 Working Days

Product Description

The Joule range of un-vented cylinders are the UK's fastest growing cylinder brand. Built on quality and performance, with one of the widest ranges of models available you can be sure there is a model to suit. Joule's Horizontal range of cylinders are come with cradles not only included but pre fitted. They can be easily removed if you need to squeeze the cylinder through a tight access hatch. These Cylinders supplied with an exclusive 1 years of guarantee from the manufacturer Joule.

Product Features

  • Indirect cylinders are heated by a boiler & immersion heater
  • Comes complete with cradles fitted
  • Insulation thickness is 50mm
  • Solar coil option available

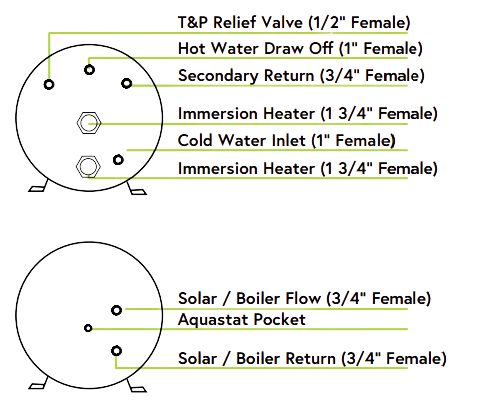

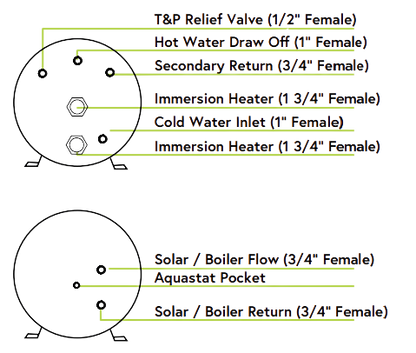

  • Female connections throughout
  • Smooth tube rigid coil means no air locking
  • Bevelled stat pocket for better fitting
  • Metallic grey wipe clean rigid case for premium appearance
  • Butt Welded process used throughout
  • Comes complete with unvented kit (see page 14 of installation guide )
  • Robotically welded
  • Branded quality components
  • Multiple system schematics available in installation manual
  • All unvented cylinders require a yearly service
  • Guarantee: 25 Year (1 Year guarantee on expansion vessel and cold water controls and all other components that are fitted to or supplied with the unit)

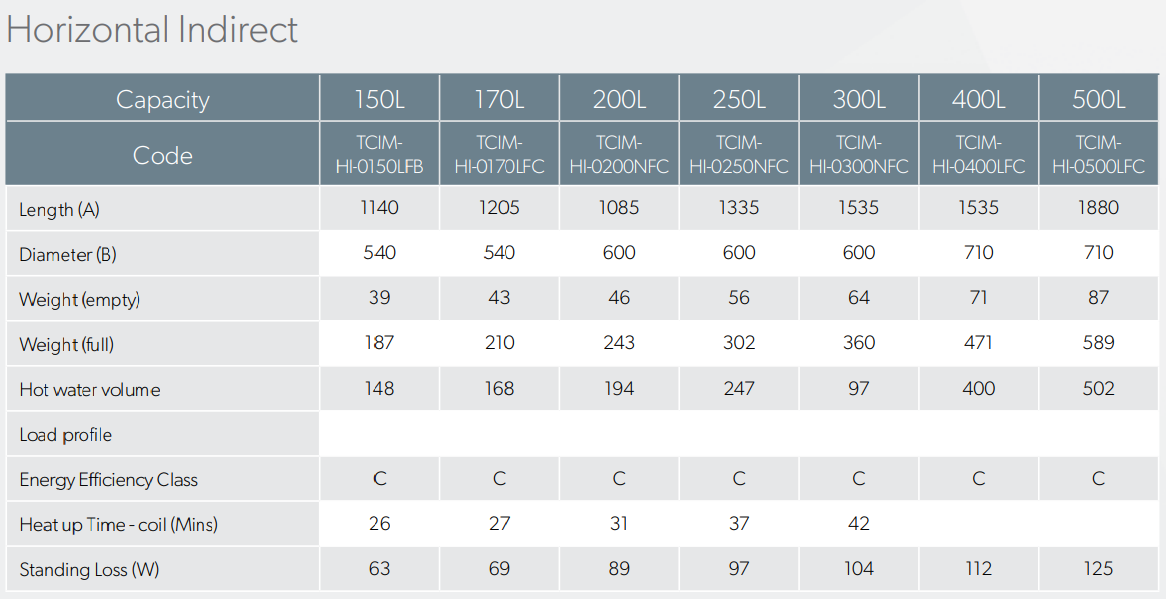

Product Specification

Capacity 500 Litre
Length 1880mm
Diameter 710mm
Weight (Empty) 87 Kg
Weight (Full) 589 Kg
Hot Water Volume 500Litre
Energy Efficiency Class C
Standing Loss 125 W
Manufacturer Part Number TCIMHI-0500NFC
