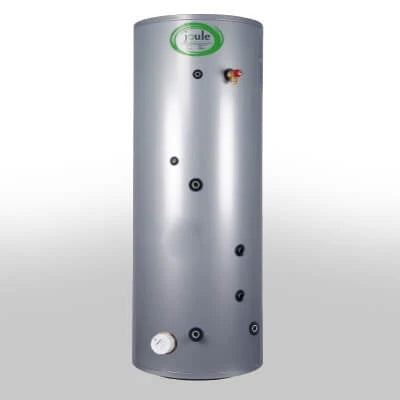

Joule Cyclone Slimline High Gain Heat Pump Indirect Unvented Stainless Steel Hot Water Cylinder - 150 Litre

Product Description

Joule 150 Litre Cyclone Indirect High Gain Slimline B Cylinder - TCIMVH-0150SFB
The cylinder includes:

• 28 mm Inlet Control Group
• 19 Litre Expansion Vessel
• 15 mm x 22 mm Tundish
• Dual Cylinder Thermostat
• 1/2" T&P Valve (pre-fitted)

For Heat Pump ready cylinder our coil quality sets us apart. Unlike most cheaper brands on the market the Joule Cyclone High Gain product line of cylinders use high recovery smooth tube coils for optimal performance. No other coil type on the market today offers the same transfer rate as smooth stainless tube.

Product Features

• 25 Year Cylinder guarantee
• 2 years guarantee on components
• Indirect cylinders are heated by a boiler & immersion heater
• Single high recovery coil in coil
• Smooth tube coil construction for durability and performance
• Compression connections fitted as standard
• Bevelled stat pocket for better fitting
• Metallic grey wipe clean rigid case for premium appearance
• Pre plugged secondary tapping for ease of installation
• All Connections clearly labelled
• Butt Welded process used throughout
• Comes complete with unvented kit (see below)
• Robotically welded
• Branded quality components

Technical Specification:

• Height - 1190 mm
• Diameter - 540 mm
• Weight (empty) - 46 kg
• Weight (full) - 196 kg
• Hot Water Volume - 140 Litres
• Energy Efficiency Class - C
• Coil Surface Area - 2.2m2
• Heat Up Time (coil) - 10 Minutes
• Standing Loss (W/24hrs) - 55 Watts

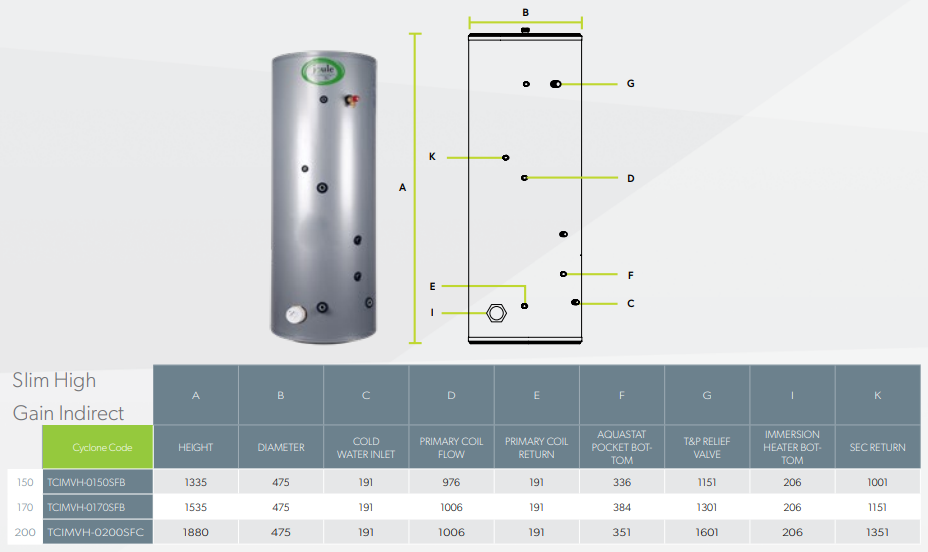

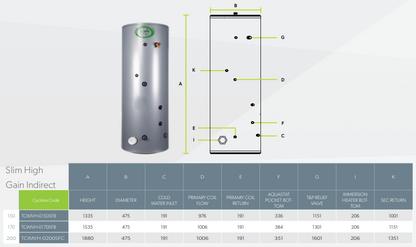

Product Specification

MPN	TCIMVH-0150SFB
Type	Heat Pump Cylinders
Cylinder Type	Indirect
Warranty (Years)	25
Height (mm)	1335
Diameter (mm)	475
