Classic Compact Type 11 Single Convector Central Heating Radiators
Classic Compact Type 11 Single Convector Central Heating Radiators
Output (BTU) : 1437
Output (Watts) : 421
Output (BTU) : 1795
Output (Watts) : 526
Output (BTU) : 2153
Output (Watts) : 631
Output (BTU) : 2515
Output (Watts) : 737
Output (BTU) : 2873
Output (Watts) : 842
Output (BTU) : 3231
Output (Watts) : 947
Output (BTU) : 3590
Output (Watts) : 1052
Output (BTU) : 3948
Output (Watts) : 1157
Output (BTU) : 4310
Output (Watts) : 1263
Output (BTU) : 4668
Output (Watts) : 1368
Output (BTU) : 5026
Output (Watts) : 1473
Output (BTU) : 4964
Output (Watts) : 1455
Output (BTU) : 5743
Output (Watts) : 1683
Output (BTU) : 6463
Output (Watts) : 1894
Output (BTU) : 7179
Output (Watts) : 2104
Output (BTU) : 7899
Output (Watts) : 2315
Output (BTU) : 8616
Output (Watts) : 2525
Output (BTU) : 9336
Output (Watts) : 2736
Output (BTU) : 10052
Output (Watts) : 2946
Output (BTU) : 10772
Output (Watts) : 3157
Output (BTU) : 1228
Output (Watts) : 360
Output (BTU) : 1535
Output (Watts) : 450
Output (BTU) : 1843
Output (Watts) : 540
Output (BTU) : 2150
Output (Watts) : 630
Output (BTU) : 2457
Output (Watts) : 720
Output (BTU) : 2764
Output (Watts) : 810
Output (BTU) : 3071
Output (Watts) : 900
Output (BTU) : 3378
Output (Watts) : 990
Output (BTU) : 3685
Output (Watts) : 1080
Output (BTU) : 3992
Output (Watts) : 1170
Output (BTU) : 4299
Output (Watts) : 1260
Output (BTU) : 4913
Output (Watts) : 1440
Output (BTU) : 5528
Output (Watts) : 1620
Output (BTU) : 6142
Output (Watts) : 1800
Output (BTU) : 7370
Output (Watts) : 2160
Output (BTU) : 7984
Output (Watts) : 2340
Output (BTU) : 8599
Output (Watts) : 2520
Output (BTU) : 9213
Output (Watts) : 2700
Output (BTU) : 1003
Output (Watts) : 294
Output (BTU) : 1508
Output (Watts) : 442
Output (BTU) : 2010
Output (Watts) : 589
Output (BTU) : 2511
Output (Watts) : 736
Output (BTU) : 3013
Output (Watts) : 883
Output (BTU) : 3515
Output (Watts) : 1030
Output (BTU) : 4016
Output (Watts) : 1177
Output (BTU) : 4521
Output (Watts) : 1325
Output (BTU) : 5023
Output (Watts) : 1472
Output (BTU) : 5524
Output (Watts) : 1619
Output (BTU) : 6026
Output (Watts) : 1766
Output (BTU) : 6527
Output (Watts) : 1913
Output (BTU) : 7029
Output (Watts) : 2060
Output (BTU) : 7534
Output (Watts) : 2208
Output (BTU) : 955
Output (Watts) : 280
Output (BTU) : 1911
Output (Watts) : 560
Output (BTU) : 2293
Output (Watts) : 672
Output (BTU) : 2675
Output (Watts) : 784
Output (BTU) : 3822
Output (Watts) : 1120
Output (BTU) : 1623
Output (Watts) : 477
Output (BTU) : 2034
Output (Watts) : 596
Output (BTU) : 2440
Output (Watts) : 715
Output (BTU) : 2846
Output (Watts) : 834
Output (BTU) : 3252
Output (Watts) : 953
Output (BTU) : 3658
Output (Watts) : 1072
Output (BTU) : 4064
Output (Watts) : 1191
Output (BTU) : 4470
Output (Watts) : 1310
Output (BTU) : 4879
Output (Watts) : 1430
Output (BTU) : 5691
Output (Watts) : 1668
Share
Couldn't load pickup availability
Plumbing Giant
Estimated Delivery: 2 - 4 Working Days
Product Description
The exclusive collection of Classic Compact panel radiators come feature-packed, and offer a vast array of over 180 sizes across 4 different configurations. These panel radiators come with a factory-fitted top grill and side panels, and feature a classic corrugated-style front; an uncomplicated design that is great for replacements and new installations alike.

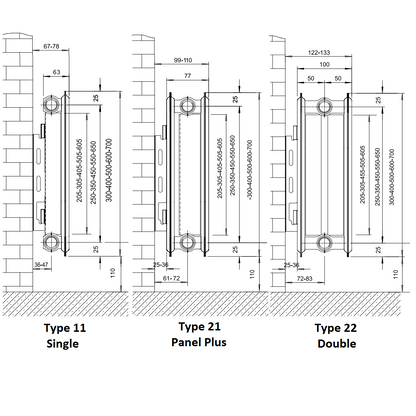

These radiator are available in following Configuration;
- Type 11 configuration - also known as a Single Convector or K1 - featuring a Single front panel and single set of convector fins.
- Type 21 configuration - also known as a P+ - featuring a two panels and Single set of convector fins.
- Type 22 configuration - also known as a Double Convector or K2 - featuring Double panel and double set of convector fins.
- Type 33 configuration - also known as a Triple Convector or K3 - featuring Triple panel and triple set of convector fins.
Product Features
- Compact panel radiator with classic corrugated front design
- Comprehensive range of sizes available spanning 5 different heights; widths up to 3000mm
- Complete with factory-fitted top grills and side panels
- Type 11 models feature single front panel and single set of convector fins
- Finished in high quality RAL 9016 Traffic White
- Suitable for operating pressures of up to 10 bar and a maximum operating temperature of 120C
- Manufactured under BS EN ISO 9001 quality system and outputs comply with EN442
- Robust and effective packaging to prevent damage in transit - plastic corners, bubble wrap and polythene protection
- Complete with installation package including brackets, bolts, vents and plugs
- L-shaped wall brackets allow for 2 different installation depths
- Includes "No Quibble Guarantee" of 10 years against faulty manufacture
Please Note
- Radiator valves not included - a selection of popular styles are available as additional options
Product Specification
| Radiator Type | Panel |
|---|---|
| Panel Type | Type 11 - Single Convector |
| Radiator Design | Standard |
| Radiator Height | 300mm, 400mm, 500mm, 600mm, 750mm, 900mm |
| Radiator Width | 400mm, 500mm, 600mm, 700mm, 800mm, 900mm, 1000mm, 1100mm, 1200mm, 1300mm, 1400mm, 1500mm, 1600mm, 1800mm |
| Radiator Depth | 63mm |
| Wall to Pipe Centres | 36 or 47mm |
| Orientation | Horizontal |
| Fuel | Central Heating |
| Material | Mild Steel |
| Colour | White |
| Inlet Connection Size | 1/2" BSP |
| Connections Position | Side |
| Brand | Classic |
| Collection | Compact |
