Classic Compact Type 21 Panel Plus Central Heating Radiators
Classic Compact Type 21 Panel Plus Central Heating Radiators
Output (BTU) : 1991
Output (Watts) : 583
Output (BTU) : 2489
Output (Watts) : 729
Output (BTU) : 2986
Output (Watts) : 875
Output (BTU) : 3484
Output (Watts) : 1021
Output (BTU) : 3982
Output (Watts) : 1167
Output (BTU) : 4479
Output (Watts) : 1313
Output (BTU) : 4977
Output (Watts) : 1459
Output (BTU) : 5475
Output (Watts) : 1605
Output (BTU) : 5973
Output (Watts) : 1751
Output (BTU) : 6470
Output (Watts) : 1896
Output (BTU) : 6968
Output (Watts) : 2042
Output (BTU) : 7466
Output (Watts) : 2188
Output (BTU) : 7963
Output (Watts) : 2334
Output (BTU) : 8959
Output (Watts) : 2625
Output (BTU) : 9954
Output (Watts) : 2917
Output (BTU) : 1718
Output (Watts) : 503
Output (BTU) : 2576
Output (Watts) : 755
Output (BTU) : 3006
Output (Watts) : 881
Output (BTU) : 3435
Output (Watts) : 1007
Output (BTU) : 3865
Output (Watts) : 1133
Output (BTU) : 4294
Output (Watts) : 1259
Output (BTU) : 4723
Output (Watts) : 1384
Output (BTU) : 5153
Output (Watts) : 1510
Output (BTU) : 5582
Output (Watts) : 1636
Output (BTU) : 6011
Output (Watts) : 1762
Output (BTU) : 6870
Output (Watts) : 2013
Output (BTU) : 2142
Output (Watts) : 628
Output (BTU) : 2856
Output (Watts) : 837
Output (BTU) : 3570
Output (Watts) : 1046
Output (BTU) : 4284
Output (Watts) : 1256
Output (BTU) : 4998
Output (Watts) : 1465
Output (BTU) : 2250
Output (Watts) : 659
Output (BTU) : 3376
Output (Watts) : 990
Output (BTU) : 4501
Output (Watts) : 1319
Output (BTU) : 5626
Output (Watts) : 1649
Output (BTU) : 6751
Output (Watts) : 1979
Output (BTU) : 3006
Output (Watts) : 881
Share
Couldn't load pickup availability
Plumbing Giant
Estimated Delivery: 2 - 4 Working Days
Product Description
The exclusive collection of Classic Compact panel radiators come feature-packed, and offer a vast array of over 180 sizes across 4 different configurations. These panel radiators come with a factory-fitted top grill and side panels, and feature a classic corrugated-style front; an uncomplicated design that is great for replacements and new installations alike.

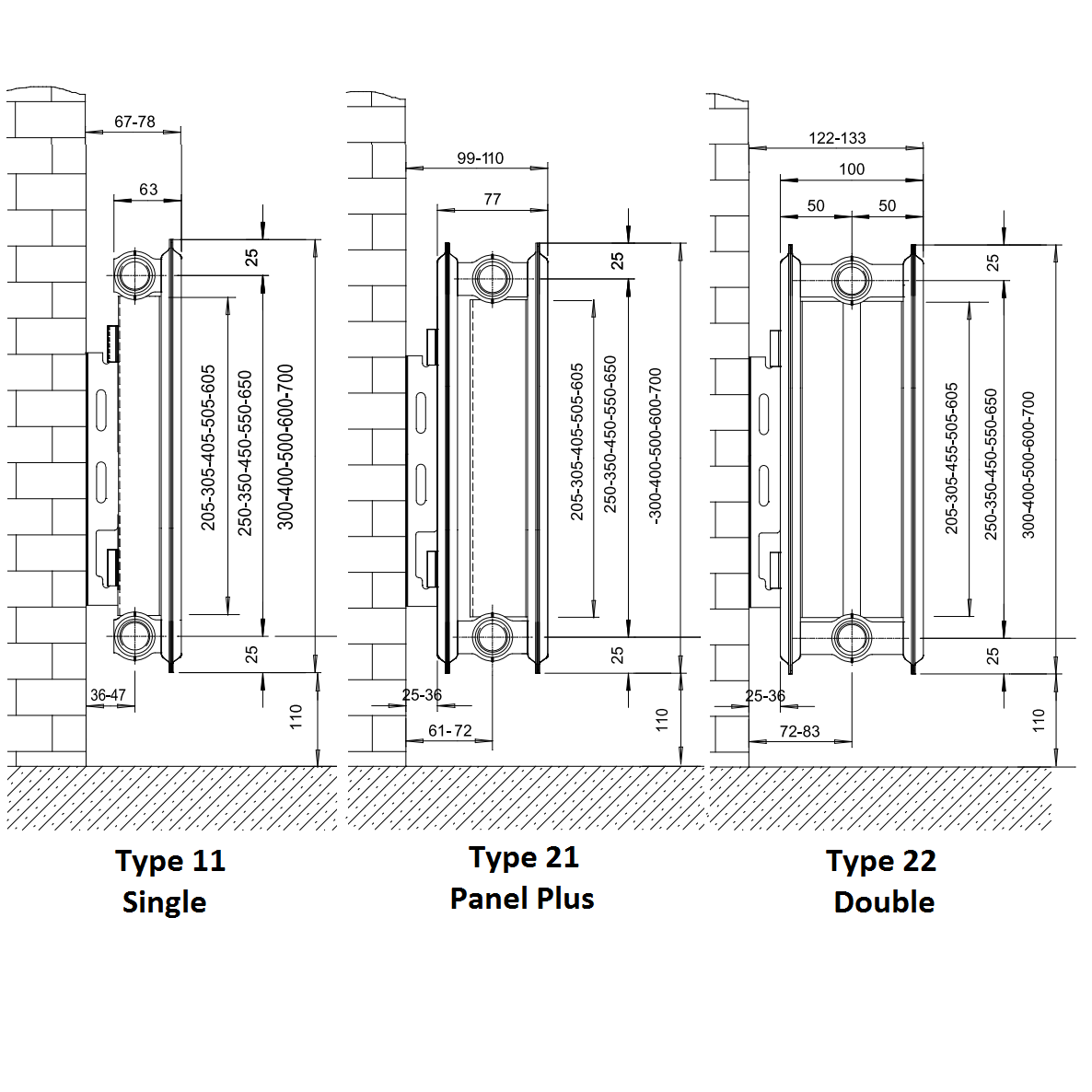

These radiator are available in following Configuration;
- Type 11 configuration - also known as a Single Convector or K1 - featuring a Single front panel and single set of convector fins.
- Type 21 configuration - also known as a P+ - featuring a two panels and Single set of convector fins.
- Type 22 configuration - also known as a Double Convector or K2 - featuring Double panel and double set of convector fins.
- Type 33 configuration - also known as a Triple Convector or K3 - featuring Triple panel and triple set of convector fins.
Product Features
- Compact panel radiator with classic corrugated front design
- Comprehensive range of sizes available spanning 5 different heights; widths up to 3000mm
- Complete with factory-fitted top grills and side panels
- Type 21 models feature front panel and back panel and single set of convector fins
- Finished in high quality RAL 9016 Traffic White
- Suitable for operating pressures of up to 10 bar and a maximum operating temperature of 120C
- Manufactured under BS EN ISO 9001 quality system and outputs comply with EN442
- Robust and effective packaging to prevent damage in transit - plastic corners, bubble wrap and polythene protection
- Complete with installation package including brackets, bolts, vents and plugs
- L-shaped wall brackets allow for 2 different installation depths
- Includes "No Quibble Guarantee" of 10 years against faulty manufacture
Please Note
- Radiator valves not included - a selection of popular styles are available as additional options
Product Specification
| Radiator Type | Panel |
|---|---|
| Panel Type | Type 21 - Panel Plus |
| Radiator Design | Standard |
| Radiator Height | 400mm, 500mm, 600mm, 700mm |
| Radiator Width | 400mm, 500mm, 600mm, 700mm, 800mm, 900mm, 1000mm, 1100mm, 1200mm, 1300mm, 1400mm, 1500mm, 1600mm, 1800mm, 2000mm |
| Radiator Depth | 77mm |
| Wall to Pipe Centres | 61 or 72mm |
| Orientation | Horizontal |
| Fuel | Central Heating |
| Material | Mild Steel |
| Colour | White |
| Inlet Connection Size | 1/2" BSP |
| Connections Position | Side |
| Brand | Classic |
| Collection | Compact |
