Classic Compact Type 22 Double Convector Central Heating Radiators
Classic Compact Type 22 Double Convector Central Heating Radiators
Output (BTU) : 2554
Output (Watts) : 749
Output (BTU) : 3192
Output (Watts) : 936
Output (BTU) : 3831
Output (Watts) : 1123
Output (BTU) : 4469
Output (Watts) : 1310
Output (BTU) : 5108
Output (Watts) : 1497
Output (BTU) : 5746
Output (Watts) : 1684
Output (BTU) : 6385
Output (Watts) : 1871
Output (BTU) : 7023
Output (Watts) : 2058
Output (BTU) : 7661
Output (Watts) : 2245
Output (BTU) : 8300
Output (Watts) : 2432
Output (BTU) : 8938
Output (Watts) : 2620
Output (BTU) : 9577
Output (Watts) : 2807
Output (BTU) : 10215
Output (Watts) : 2994
Output (BTU) : 11492
Output (Watts) : 3368
Output (BTU) : 12769
Output (Watts) : 3742
Output (BTU) : 15323
Output (Watts) : 4491
Output (BTU) : 2212
Output (Watts) : 648
Output (BTU) : 2765
Output (Watts) : 810
Output (BTU) : 3318
Output (Watts) : 972
Output (BTU) : 3871
Output (Watts) : 1135
Output (BTU) : 4424
Output (Watts) : 1296
Output (BTU) : 4977
Output (Watts) : 1459
Output (BTU) : 5531
Output (Watts) : 1621
Output (BTU) : 6084
Output (Watts) : 1783
Output (BTU) : 6637
Output (Watts) : 1945
Output (BTU) : 7190
Output (Watts) : 2107
Output (BTU) : 7743
Output (Watts) : 2269
Output (BTU) : 8849
Output (Watts) : 2593
Output (BTU) : 9955
Output (Watts) : 2918
Output (BTU) : 11061
Output (Watts) : 3242
Output (BTU) : 13273
Output (Watts) : 3890
Output (BTU) : 1841
Output (Watts) : 539
Output (BTU) : 2761
Output (Watts) : 809
Output (BTU) : 3681
Output (Watts) : 1079
Output (BTU) : 4601
Output (Watts) : 1348
Output (BTU) : 5522
Output (Watts) : 1618
Output (BTU) : 6442
Output (Watts) : 1888
Output (BTU) : 7362
Output (Watts) : 2158
Output (BTU) : 8282
Output (Watts) : 2427
Output (BTU) : 9203
Output (Watts) : 2697
Output (BTU) : 11043
Output (Watts) : 3237
Output (BTU) : 10123
Output (Watts) : 2967
Output (BTU) : 1797
Output (Watts) : 527
Output (BTU) : 3594
Output (Watts) : 1053
Output (BTU) : 4312
Output (Watts) : 1264
Output (BTU) : 5031
Output (Watts) : 1474
Output (BTU) : 7187
Output (Watts) : 2106
Output (BTU) : 2869
Output (Watts) : 841
Output (BTU) : 3587
Output (Watts) : 1051
Output (BTU) : 4304
Output (Watts) : 1261
Output (BTU) : 5022
Output (Watts) : 1472
Output (BTU) : 5739
Output (Watts) : 1682
Output (BTU) : 6456
Output (Watts) : 1892
Output (BTU) : 7174
Output (Watts) : 2103
Output (BTU) : 7891
Output (Watts) : 2313
Output (BTU) : 8608
Output (Watts) : 2523
Output (BTU) : 10043
Output (Watts) : 2943
Output (BTU) : 10717
Output (Watts) : 3141
Output (BTU) : 12055
Output (Watts) : 3533
Share
Couldn't load pickup availability
Plumbing Giant
Estimated Delivery: 2 - 4 Working Days
Product Description
The exclusive collection of Classic Compact panel radiators come feature-packed, and offer a vast array of over 180 sizes across 4 different configurations. These panel radiators come with a factory-fitted top grille and side panels, and feature a classic corrugated-style front; an uncomplicated design that is great for replacements and new installations alike.

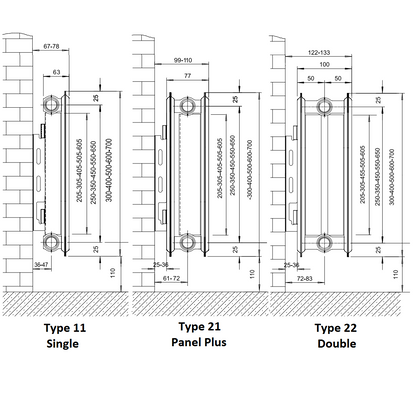

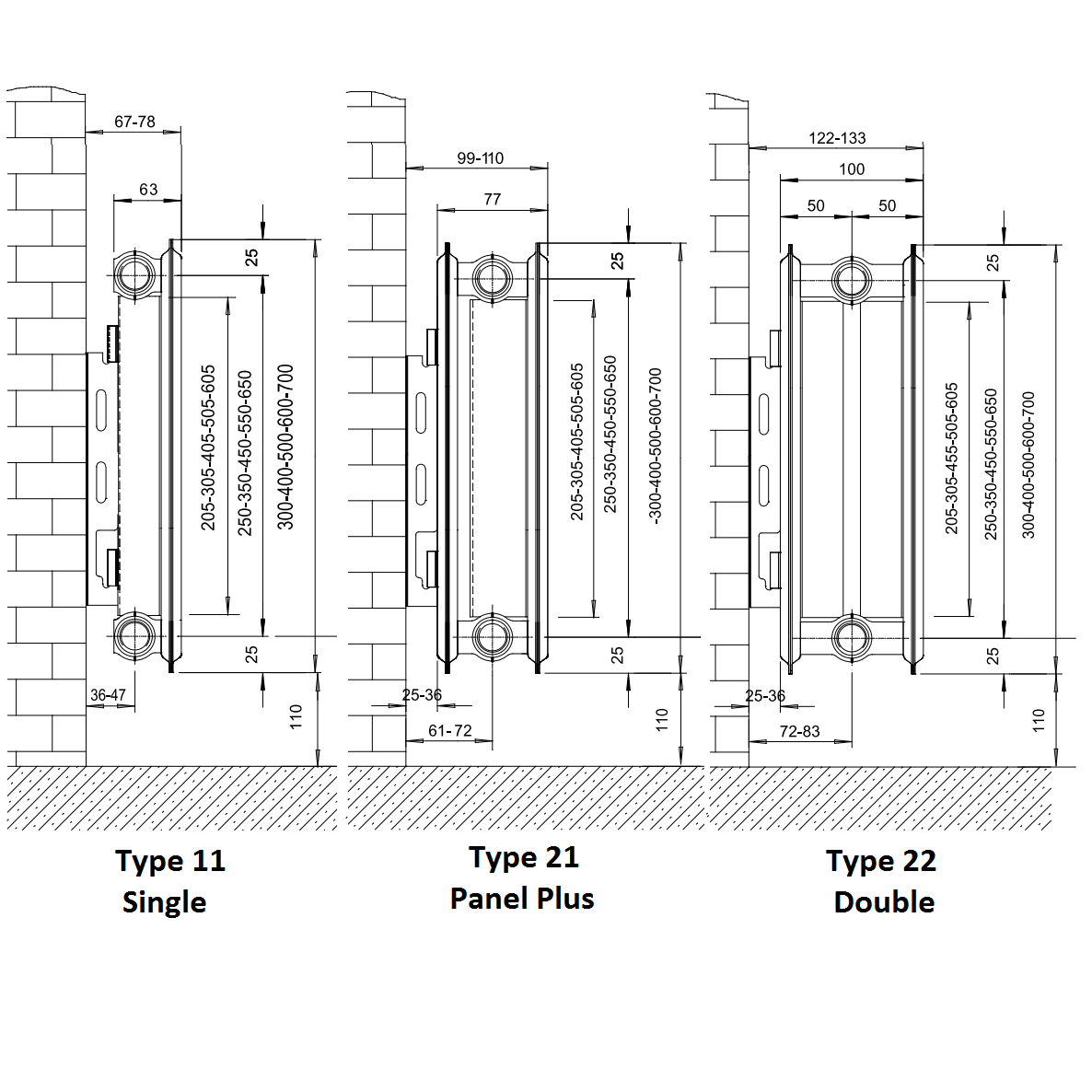

These radiator are available in following Configuration;
- Type 11 configuration - also known as a Single Convector or K1 - featuring a Single front panel and single set of convector fins.
- Type 21 configuration - also known as a P+ - featuring a two panels and Single set of convector fins.
- Type 22 configuration - also known as a Double Convector or K2 - featuring Double panel and double set of convector fins.
- Type 33 configuration - also known as a Triple Convector or K3 - featuring Triple panel and triple set of convector fins.
Product Features

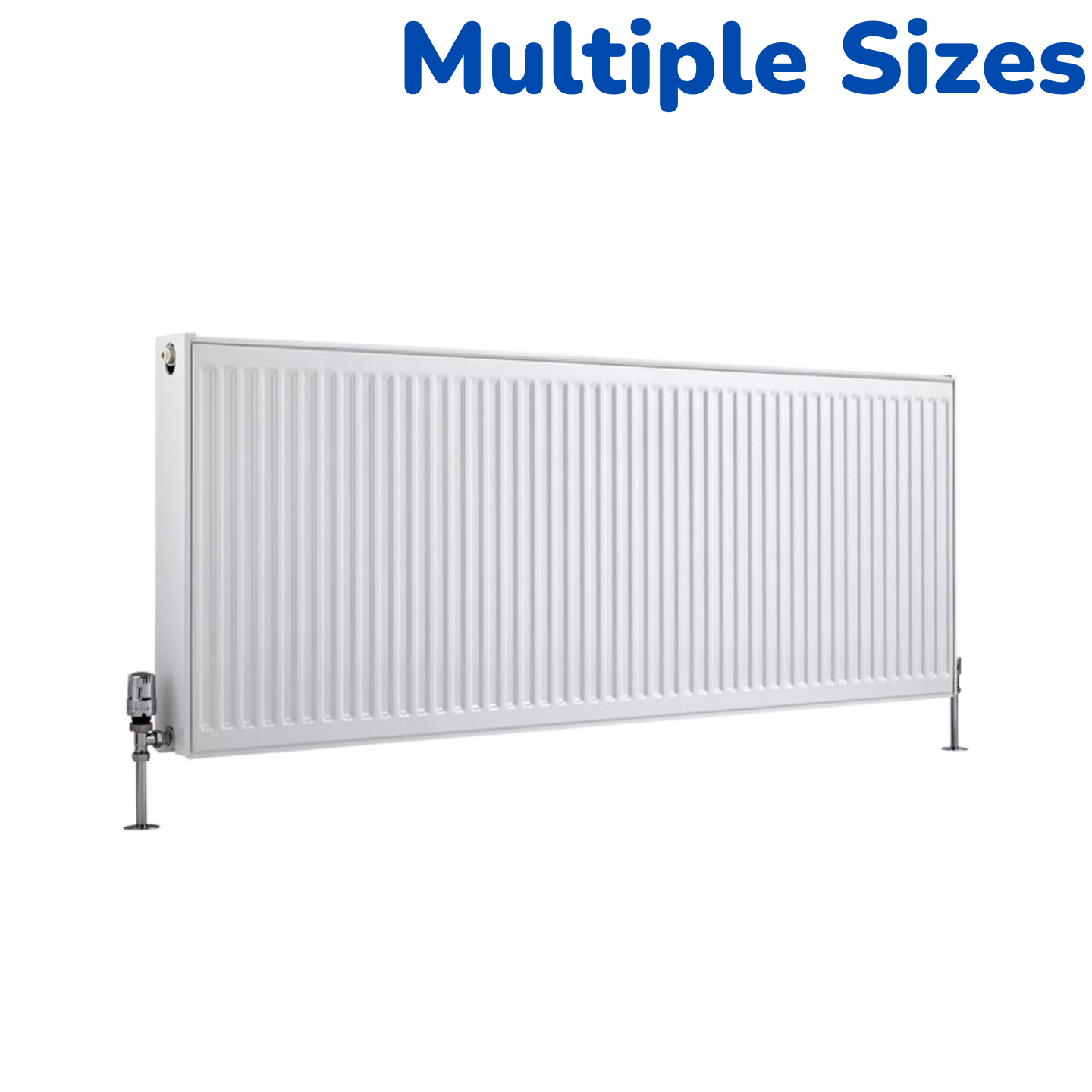

- Compact panel radiator with classic corrugated front design
- Comprehensive range of sizes available spanning 5 different heights; widths up to 3000mm
- Complete with factory-fitted top grilles and side panels
- Type 22 models feature double front panel and single set of convector fins
- Finished in high quality RAL 9016 Traffic White
- Suitable for operating pressures of up to 10 bar and a maximum operating temperature of 120C
- Manufactured under BS EN ISO 9001 quality system and outputs comply with EN442
- Robust and effective packaging to prevent damage in transit - plastic corners, bubble wrap and polythene protection
- Complete with installation package including brackets, bolts, vents and plugs
- L-shaped wall brackets allow for 2 different installation depths
- Includes "No Quibble Guarantee" of 10 years against faulty manufacture
Please Note
- Radiator valves not included - a selection of popular styles are available as additional options
Product Specification
| Radiator Type | Panel |
|---|---|
| Panel Type | Type 22 - Double Convector |
| Radiator Design | Standard |
| Radiator Height | 300mm, 400mm, 500mm, 600mm, 700mm |
| Radiator Width | 400mm, 500mm, 600mm, 700mm, 800mm, 900mm, 1000mm, 1100mm, 1200mm, 1300mm, 1400mm, 1500mm, 1600mm, 1800mm, 2000mm, 24mm |
| Radiator Depth | 100mm |
| Wall to Pipe Centres | 72 or 83mm |
| Orientation | Horizontal |
| Fuel | Central Heating |
| Material | Mild Steel |
| Colour | White |
| Inlet Connection Size | 1/2" BSP |
| Connections Position | Side |
| Brand | Classic |
| Collection | Compact |
